NEODYMIUM FLEXIBLE MAGNETS: balance between magnetic strength, flexibility, and practicality.
What is neodymium flexible magnets?
Have you ever heard of neodymium flexible magnets? They’re a type of magnet that combines the high magnetic strength of neodymium iron boron (NdFeB) with the flexibility of a polymer matrix.
Neodymium iron boron is a permanent magnetic material known for its powerful magnetic properties, and flexible magnets are made by mixing neodymium iron boron magnetic powder with a flexible material such as rubber or plastic.
This composite material makes it super easy to bend, twist, and cut the magnets into whatever shape you want, while keeping their magnetic properties intact.
You’ll find these flexible neodymium iron born magnets in different forms, such as sheets, tapes, or strips, and you can cut them to fit your needs. Neodymium flexible magnets are known for their amazing magnetic strength compared to regular rubber magnets. They’re 10 times stronger than other magnetic sheets on the market thanks to their NdFeB properties.
THE OPTIONAL FEATURES of
neodymium flexible rubber magnets
Neodymium flexible rubber magnets offer a unique combination of features that make them highly desirable for a wide range of applications. Here are some of the key features of these magnets:
1. High Energy Magnetic Intensity:
One of the best things about neodymium flexible magnets is how strong they are. They’re made with neodymium (NdFeB), which is one of the strongest types of permanent magnets you can find. Even though they’re flexible, these magnets still have the high magnetic strength you’d expect from neodymium magnets. They’re not as strong as solid neodymium magnets, but they’re still pretty impressive!
2. Customizable:
Neodymium flexible rubber magnets are so versatile! They can be easily cut or trimmed to specific sizes and shapes to fit your specific applications. This customizability is great because it allows us to make the magnets exactly what you need for your project.
3. Flexibility:
These magnets are super flexible! They can be bent and shaped without losing their magnetic properties. This makes them perfect for use in all kinds of different applications where a flexible magnetic solution is needed.
4. Adhesive Backing Option:
Many neodymium flexible magnets come with a self-adhesive backing, which is great because it makes them easy to attach to various surfaces, including walls, doors, and other ferrous materials. This feature expands their application range, which is really handy!
5. Resilience and Durability:
Neodymium flexible magnets are the perfect choice for any application where you need to withstand harsh environmental conditions without losing your magnetic properties. They are highly durable and can maintain their effectiveness over a long period of time, making them suitable for both indoor and outdoor applications.
6. Safe and Environmentally Friendly:
Flexible neo magnets are a great choice if you’re looking for something that’s less prone to breaking or cracking compared to solid neodymium magnets. They’re super durable and safe, especially in environments where they might be handled frequently or subjected to stress. Plus, they’re lead and barium-free, so they’re safe for handling.
7. Lightweight:
The clever combination of neodymium powder with a flexible binder results in a material that is lighter than solid neodymium magnets, which is great for applications where weight is a concern.
These amazing features are the reason why neodymium flexible magnets are so popular in so many industries and applications! They offer the perfect balance of strength, flexibility, and practicality, making them a top choice for many.
To learn more about flexible NdFeB magnets and how they work for you, contact sinoneo magnets today.
Why us
REASON TO CHOOSE SINONEO FOR NEODYMIUM FLEXIBLE MAGNETS?
There are many great options for neodymium flexible magnets on the market. But if you’re looking for a supplier that can offer you a range of customization options and top-quality materials, Sinoneo is your best choice.
Extensive industry experience
We’ve been in the industry for years and we’re passionate about providing you with the very best flexible NdFeB magnet solutions.
Custom Shipment
We can ship your product almost any way you want it—in rolls, bulk on skids, cut blanks in boxes, or using personalized packaging for your label.
Wide range of customization options
To ensure you get the perfect neodymium flexible magnets for your specific application needs, we offer a wide range of customization options.
Reduce your costs
We are committed to upholding top-notch quality standards, providing customers with quick turnaround times and competitive pricing.
Get a free Quote for your BUSINESS now!
Contact Sinoneo today to learn more about how we can help you get the perfect neodymium flexible magnet for your business. With our expertise and commitment to quality, you can trust us to provide you with the very best magnet solutions on the market.
THE APPLICATION OF
Flexible rubber neodymium magnets
Magnetic Closures
Flexible neodymium magnets can be used to create a secure closure on clothing, bags, and other items that require a secure but flexible closure.
Magnetic Therapy
Some people use neodymium flexible magnets in alternative therapy practices, although the effectiveness of such uses is not scientifically proven.
Magnetic Tools
Neodymium flexible rubber magnets are ideal for use in the creation of magnetic tool holders in workshops or garages.
Automotive Applications
They can be used for various purposes in vehicles, such as holding tool kits or as part of the motor and sensor systems.
Consumer Electronics
They are used in various consumer electronic devices, such as flat speakers, and headphones,. Their strong magnetism and flexibility enable the development of compact and efficient electronic products.
Crafts and DIY Projects
The ability to cut these magnets into various shapes makes them perfect for a variety of craft projects and do-it-yourself applications.
Sensors and motors
Flexible NdFeB magnets can be used in the construction of sensors and motors that require a flexible yet strong magnetic field.
Manufacturing and Robotics
These magnets are integrated into robotic systems and manufacturing equipment to complete tasks. Their flexibility enables the implementation of innovative and precise automation solutions.
Toy Design
They can be incorporated into the design of toys that require magnetic interactions.
Neodymium flexible magnets are powerful, versatile and indispensable in many industries. Their unique combination of flexibility, strength and versatility make them invaluable tools in many applications, from advertising and crafts to organizational, educational and industrial environments. These magnets offer innovative solutions due to their exceptional magnetic properties.
As technology advances, the potential uses and benefits of neodymium flexible magnets will continue to expand. Ongoing research and innovation will lead to new applications and improvements, further integrating these magnets into modern technology and industry.
Get in touch with Sinoneo Magnets now and discover how these extraordinary tools can revolutionize your projects and increase your success. Contact us and let’s create the future together!
The technical date sheet of
neodymium flexible magnets
| Grade | Residual Induction(Br) | Coercive Force (Hcb) | Intrinsic Coercive Force (Hcj) | Max Energy Product (BH)max | Working Temp. | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m2 | MGOe | Tw(℃) | |
| R2 | 250~350 | 2500~3500 | 120~200 | 1500~2500 | 150~320 | 2000~4000 | 12~20 | 1.5~2.5 | -40~80 |
| R3 | 330~430 | 3300~4300 | 170~250 | 2100~3100 | 380~540 | 4800~6800 | 20~28 | 2.5~3.5 | -40~80 |
| R4 | 380~480 | 3800~4800 | 210~300 | 2700~3700 | 540~700 | 6800~8000 | 28~36 | 3.5~4.5 | -40~80 |
| R5 | 430~530 | 4300~5300 | 250~340 | 3200~4200 | 620~780 | 7800~9800 | 36~44 | 4.5~5.5 | -40~80 |
| R6 | 480~580 | 4800~5800 | 290~380 | 3700~4700 | 630~800 | 8000~10000 | 44~52 | 5.5~6.5 | -40~80 |
| R7 | 530~630 | 5300~6300 | 340~420 | 4300~5300 | 670~880 | 8500~11000 | 52~60 | 6.5~7.5 | -40~80 |
| R8 | 570~670 | 5700~6700 | 350~440 | 4500~5500 | 670~880 | 8500~11000 | 60~68 | 7.5~8.5 | -40~80 |
| Grade | Tensile Strength（kg/cm²） | Hardness (A) | Density (g/cm³) | Heat Resistance | Cold Resistance | Moisture Resistance | High-Low Temperature | Motor Oil Resistance |
| R2 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R3 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R4 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R5 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R6 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R7 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| R8 | ≥10 | 90+/-10 | 3.80~5.60 | Average | Good | Average | Average | Average |
| Length(mm)L | Width(mm)W | Hight(mm)H | |||
| Dimension | Tolerance | Dimension | Tolerance | Dimension | Tolerance |
| ≤50 | ±0.3 | ≤50 | ±0.3 | ＜1 | ±0.05 |
| >50～100 | ±0.5 | >50～100 | ±0.5 | ≥1～4 | ±0.1 |
| >100~200 | +2/-0 | >100~200 | +2/-0 | ≥4~10 | ±0.15 |
| >200~400 | +3/-0 | >200~400 | +3/-0 | ||
Remark:Productons will be manufactured with the dimensional tolerances of products required by the customers,if the dimensional tolerances are not in the range of the above table.
Neodymium flexible magnets are a great choice for anyone looking for a versatile and powerful type of magnet that can be customized to meet specific requirements. We’re happy to offer the custom options available below:
1. Custom Shapes and Sizes: Neodymium flexible magnets can be manufactured in a variety of shapes and sizes to suit different applications. Whether you need a specific shape like a strip, sheet, or custom contour, or a specific size, we’re here to help you create magnets that meet your exact specifications.
2. Custom Coatings: Neodymium flexible magnets can be coated with a wide range of materials to enhance their performance and protect them from corrosion. From teflon to PVC, adhesive to rubber, and laminate, there are so many possibilities! These coatings can provide additional strength, flexibility, and resistance to environmental factors, making them an excellent choice for any application.
3. Custom Strength and Flexibility: We can customize the strength and flexibility of neodymium flexible magnets based on your requirements. By adjusting the composition and manufacturing process, magnets can be tailored to provide the desired magnetic strength and flexibility for your specific application.
4. Custom Magnetization: Neodymium flexible magnets can be magnetized in different ways to suit specific applications, which means we can create a magnet that’s perfect for you! Whether you need a single-pole magnet, a multi-pole magnet, or a magnet with a specific magnetic field pattern, we can customize the magnetization to meet your needs.
5. Custom Packaging and Labeling: We can also provide custom packaging and labeling options for neodymium flexible magnets. This can include branding, product information, and specific packaging requirements to ensure safe handling and storage.
HAVEN’T FIND WHAT ARE YOU LOOKING FOR?
If you have not yet found what you are looking for then you can simply click “CONTACT US” for expert technical advice.Sinoneo is the professional neodymium flexible magnets manufacturer and supplier in China. Our magnet engineers will help you get exactly what you need – for your retail or industrial applications – in a short time with high quality at a better price.
FEATURED TYPE OF neo FLEXIBLE MAGNETS
GET YOUR CUSTOM RARE EARTH NEODYMIUM FLEXIBLE MAGNETS TODAY!

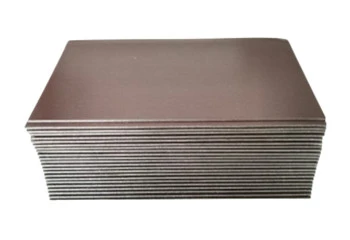

Neodymium Flexible Magnetic Sheets
Neodymium flexible magnetic sheets combine the strength of neodymium magnets with the flexibility of a sheet. They are produced by blending neodymium powder with a flexible polymer resin, creating a thin and flexible magnetic material.

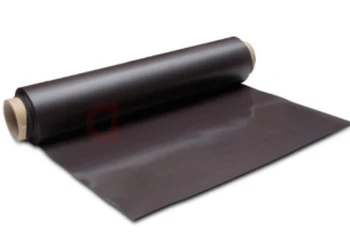

High Energy Rare earth Neodymium Flexible Magnetic Rolls
Neodymium flexible magnetic rolls combine the strength of neodymium magnets with the flexibility of a roll. They can be bent, shaped, and cut to fit various applications.

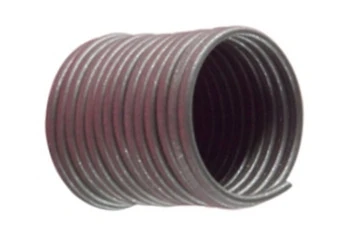

Neodymium Flexible Magnetic Strip
These strips provide a versatile and powerful magnetic solution for a wide range of applications that require a strong and reliable hold. These strips offer a high magnetic force and the ability to conform to different shapes and surfaces.

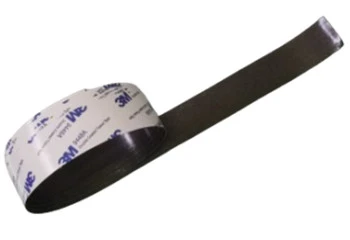

neodymium flexible magnetic tape
Neodymium magnetic tape is a type of magnet that combines the powerful magnetic force of neodymium with the flexibility and convenience of a tape format. It’s a thin, flexible strip of magnetized material with an adhesive backing, which makes it easy to apply to various surfaces.

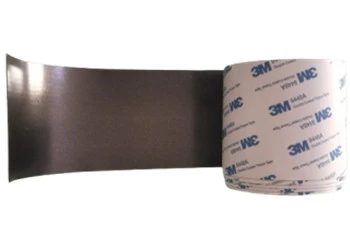

Neodymium magnetic sheets & rolls with 3M self-adhesive
3M self-adhesive neodymium magnetic sheets are a strong and flexible magnetic hold for various applications. These sheets and rolls combine the high magnetic strength of neodymium with the reliable self-adhesive backing from 3M.

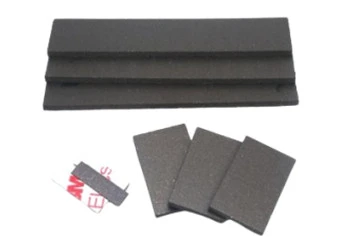

custom Neodymium Flexible magnets
Our custom neodymium flexible magnets provide a special chance to tailor magnets to fit your exact needs and uses. By adjusting the size, shape, thickness, and magnetic power of the magnets, you can create a solution that is both practical and visually appealing.
Unleash Your Creativity with Neodymium Flexible Magnets: The Magnetic Force that Bends, Shapes, and Transforms Possibilities into Reality.
Faq
Read The FREQUENTLY ASKED QUESTIONS
What are the limitations of flexible rare earth neodymium magnets?
While they offer a unique combination of strength and flexibility, neodymium flexible magnets have a few limitations. They’re not as strong as rigid neodymium magnets, and they can lose their magnetism at high temperatures. Also, they’re not waterproof, so be careful not to get them wet. They can also be damaged by too much force.
How do flexible neodymium magnets compare to other types of flexible magnets in terms of strength and flexibility?
Neodymium flexible magnets are a great choice for anyone looking for a good balance of strength and flexibility. They’re generally stronger than rubber magnets but may be less flexible than some other materials.
The specific choice depends on the application’s requirements, so it’s always best to do your research!
How does the thickness of the magnet affect its flexibility and strength?
The thickness of the magnet affects both its flexibility and strength, so it’s important to choose the right one for your needs. Thinner magnets are more flexible, but they don’t have as strong a magnetic force.
On the other hand, thicker magnets are less flexible, but they have a stronger magnetic force. The ideal thickness really depends on the specific application and the desired balance of flexibility and strength.
How do I choose the right neodymium flexible rubber magnet for my application?
It’s important to think about the magnetic strength, flexibility, size, shape, and temperature resistance that your specific application needs. It’s also really important to think about the environmental conditions and any potential hazards involved. We’re here to help you choose the perfect option!
